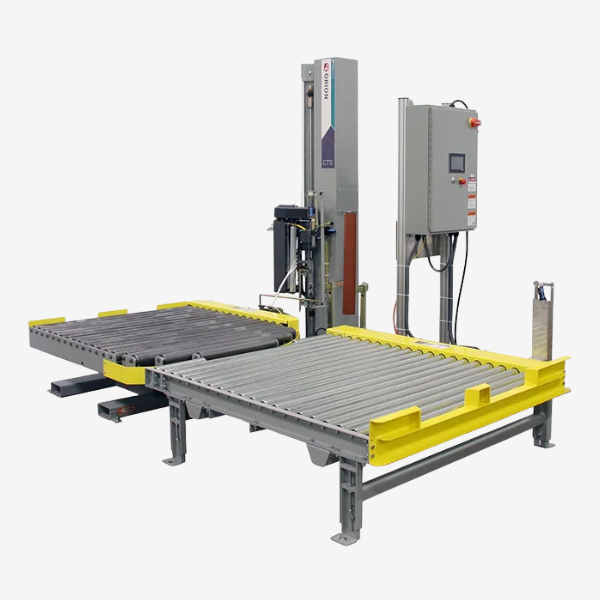

Orion CTS Conveyorized Twin Station Stretch Wrapper

The Orion CTS increases forklift efficiency and reduces load handling times using a powered conveyor turntable, and a gravity discharge conveyor for staging and pickup. To speed throughput even further, the CTS incorporates many of the same components found in our larger, more sophisticated automatic systems.

One such device is the pneumatically activated film-tail cut-and-wipe-down, which provides a professional hands free finish to the automated wrapping process. The forklift driver doesn’t have to dismount during loading, start of wrapping, or unloading. The operator simply pulls a lanyard, or uses the optional Orion remote control to begin the process — freeing time to get the next pallet or attend to other tasks.

CTS Features and Benefits:

• 4,000 lbs. turntable weight capacity
• Up to 15 RPM variable speed
• Heavy duty direct chain/sprocket turntable drive
• Conveyor speed – 30 FPM with soft start
• Conveyor-powered chain driven 2.5” diameter rollers on 3.25” centers
• Pass height – 18″ from the floor
• Automatic load height sensing — ideal for different pack patterns
• 260% standard film pre-stretch for maximum material savings
• Automatic film force-to-load feature constantly adapts to load shape, size and operating speed so uniform tension is applied to the entire load
• AC motors with B&R VFD
• HMI with 7” color touch screen & 9 recipes
• Structural steel tube base frame
