China Top 10 Automatic Stretch Wrap Machine Manufacturers?

Choosing the right automatic stretch wrap machine can influence packaging speed, film use, product stability, and daily operating costs. This guide examines ten notable manufacturers in China that serve warehouses, factories, logistics centers, and export-oriented businesses. The focus is practical rather than promotional. A reliable machine should wrap a pallet evenly, protect unstable loads, and operate consistently during long production shifts.

The evaluation considers manufacturing experience, machine design, pre-stretch systems, control panels, safety features, customization, installation support, and after-sales service. Details matter. Film tension should remain steady around sharp carton corners. Sensors should detect different pallet heights without repeated adjustments. A clear touchscreen can save time when operators change wrapping cycles, film overlap, or rotation speed. Energy consumption and spare-parts availability also deserve attention.

No ranking is permanently perfect. Supplier capabilities, export records, and product ranges can change. Public information may not reveal every factory’s real production capacity or service response. That limitation deserves honest consideration. Buyers should request test videos, technical drawings, warranty terms, and sample wrapping results before making a decision. If possible, inspect a running machine with a similar pallet size and load pattern. Small tests often reveal more than polished brochures. The companies discussed here are selected through practical, evidence-based criteria, but each buyer should verify current specifications independently. A strong manufacturer is not simply the cheapest option. It should provide dependable engineering, transparent communication, and support that remains useful after installation. That is where long-term value becomes visible.

Table of Contents [Hide]

1 What Are Automatic Stretch Wrap Machines and How Do They Work?

2 How to Evaluate China’s Top Automatic Stretch Wrap Machine Manufacturers

3 Who Are the Top 10 Automatic Stretch Wrap Machine Manufacturers in China?

4 What Products, Technologies, and Industries Do These Manufacturers Serve?

5 How to Choose the Right Chinese Manufacturer for Your Packaging Needs?

What Are Automatic Stretch Wrap Machines and How Do They Work?

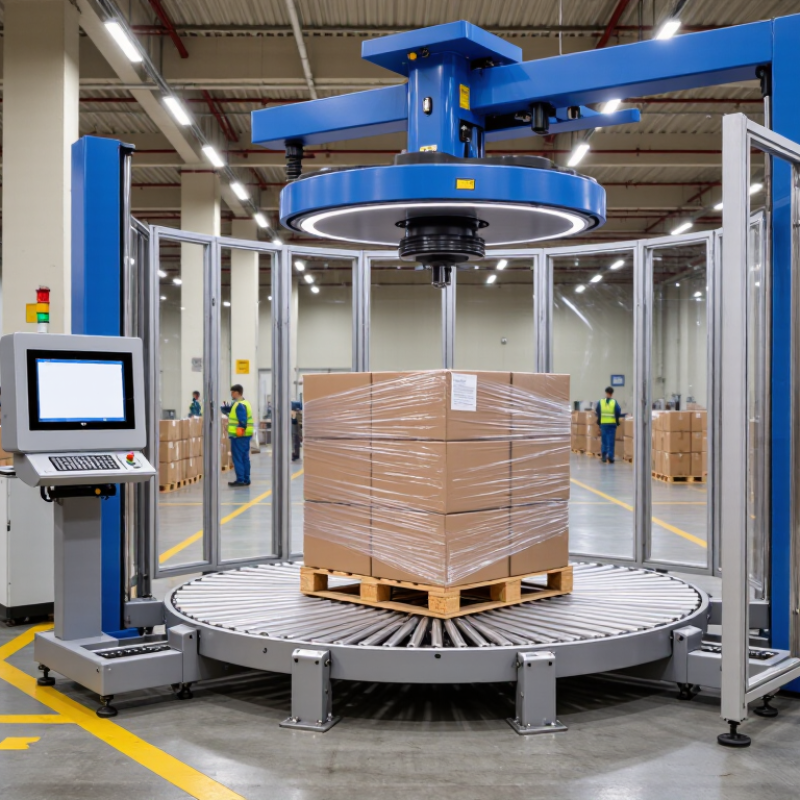

Automatic stretch wrap machines secure pallet loads with controlled film tension, rotation, and cutting. A conveyor positions the pallet, while sensors detect its height and width. The machine then rotates the load or moves a wrapping arm around it.

Inside the film carriage, powered rollers stretch the film before application. Pre-stretch ratios commonly range from 150% to 300%, depending on film type and load stability. Higher stretch can reduce material use, but excessive tension may crush cartons or deform fragile products. The Smithers report, The Future of Stretch and Shrink Films to 2028, identifies continued demand for downgauged films and improved resource efficiency. That trend makes tension control increasingly important.

A programmed cycle usually applies bottom wraps, rises vertically, and finishes with top wraps. The cutter then seals the film against the load. Safety doors, emergency stops, and light curtains protect operators near moving parts. Grand View Research estimates the global packaging automation market will expand at about 8% annually from 2024 to 2030, reflecting wider adoption of automated handling systems. Yet automation is not always better by default. A poorly adjusted sensor can leave the pallet loose, while uneven loads may still need corner protection or manual inspection. Test the wrapped pallet under real transport conditions. That practical step is often missed.

How to Evaluate China’s Top Automatic Stretch Wrap Machine Manufacturers

Evaluating China’s top automatic stretch wrap machine manufacturers requires more than comparing quoted prices. Start with proven application experience. Ask for videos showing machines wrapping similar pallet sizes, loads, and film types. Request references from factories with comparable daily output. A polished brochure proves little.

Technical review should examine frame strength, turntable balance, film carriage control, and sensor accuracy. Check whether the control system supports clear fault messages and simple parameter changes. Confirm the claimed wrapping speed under real load conditions, not an empty-pallet demonstration. Reliable manufacturers provide drawings, electrical lists, spare-parts recommendations, and documented testing procedures. During acceptance testing, measure film consumption, cycle time, load stability, and emergency-stop response. Do not accept vague performance promises.

E-E-A-T also depends on factory transparency and after-sales capability. An established manufacturer should explain its quality checks, operator training, installation process, and remote support response times. Look for traceable components and consistent welding, wiring, and guarding standards. I have seen attractive machines fail because the film carriage was poorly adjusted. That weakness increased waste and caused unstable loads. It is worth asking uncomfortable questions about maintenance access, software updates, and production delays. A dependable evaluation combines factory evidence, technical testing, customer feedback, and practical operating experience.

China Top 10 Automatic Stretch Wrap Machine Manufacturers? - How to Evaluate China’s Top Automatic Stretch Wrap Machine Manufacturers

The table below provides a practical, specification-based framework for evaluating Chinese automatic stretch wrap machine manufacturers. The figures are typical published market ranges and evaluation benchmarks rather than rankings or claims about any individual company.

No.	Evaluation Dimension	Typical Market Benchmark	Why It Matters	Recommended Verification Method
1	Maximum Pallet Load	Approximately 1,500–2,000 kg for standard automatic turntable systems; heavier-duty models may support more.	Confirms that the machine can safely handle the customer’s heaviest palletized products.	Request the rated load, safety factor, and a load test using the actual pallet and product.
2	Pallet Size Compatibility	Common turntable diameters are about 1,500–2,200 mm, supporting many standard pallet footprints.	Correct sizing prevents overhang, instability, and restricted access during wrapping.	Compare the machine drawing with pallet length, width, clearance, and forklift approach requirements.
3	Wrapping Height	Typical automatic systems wrap approximately 1,800–2,800 mm high loads, depending on the mast design.	The height range must cover the shortest and tallest products in the production plan.	Test both minimum and maximum load heights, including irregular or unstable loads.
4	Wrapping Speed and Throughput	Film carriage speeds commonly reach about 2–5 m/min, while cycle time often ranges from 1.5–3 minutes per pallet.	Higher throughput can reduce labor requirements and production bottlenecks.	Measure complete cycles per hour with the required number of top and bottom wraps.
5	Film Compatibility	Many machines use stretch film approximately 500 mm wide, with film thickness commonly around 12–35 microns.	Compatibility affects packaging strength, film consumption, and operating cost.	Verify film width, core diameter, roll weight, pre-stretch ratio, and allowable film thickness.
6	Pre-Stretch Control	Powered pre-stretch systems commonly provide selectable ratios such as 150%, 200%, or 250%, depending on configuration.	Controlled pre-stretch improves load stability and may lower film usage.	Check actual film elongation, tension consistency, and roll consumption during a production trial.
7	Automation and Line Integration	Available functions may include automatic film cutting, heat sealing, pallet detection, conveyor transfer, and PLC control.	Integration reduces manual handling and supports consistent packaging output.	Request I/O lists, communication protocols, line-layout drawings, and integration responsibilities.
8	Safety Design	Important provisions include emergency-stop devices, guarding, safety switches, overload protection, and protected moving components.	Safety features protect operators and support compliance with workplace machinery requirements.	Review the risk assessment, safety circuit, guarding layout, manuals, and applicable conformity documentation.
9	Electrical and Utility Requirements	Many systems operate on three-phase industrial power, commonly around 380–415 V and 50 Hz, but configurations vary by destination.	Correct electrical specifications prevent installation delays and compatibility problems.	Confirm voltage, frequency, rated power, compressed-air requirements, plug type, and local electrical standards.
10	Quality Assurance and After-Sales Support	A reliable supplier should provide documented factory testing, spare-parts availability, operating manuals, training, and warranty terms.	Service responsiveness directly affects uptime and the total cost of ownership.	Check inspection records, warranty coverage, response times, spare-parts lead times, references, and remote-support procedures.

Note: Actual specifications vary by machine model and project configuration. Buyers should confirm all figures through technical drawings, factory acceptance testing, and written quotations.

Who Are the Top 10 Automatic Stretch Wrap Machine Manufacturers in China?

China’s top ten automatic stretch wrap machine manufacturers are best identified by capability, not advertising claims. The leading group includes factories producing turntable, rotary-arm, and rotary-ring systems for pallets, cartons, and irregular loads. They typically offer automatic film cutting, clamping, pre-stretch control, and conveyor integration. Some also develop customized lines for cold storage, food processing, and warehouse operations.

A reliable manufacturer should show recent factory projects, machine testing records, and clear performance data. Check wrapping speed, load limits, film savings, and electrical standards before comparing prices. Experienced suppliers usually test a customer’s actual pallet, including unstable boxes or uneven corners. That detail matters. A machine that performs well with one load may struggle with another.

The strongest candidates maintain machining, electrical assembly, and quality inspection under controlled procedures. They provide manuals, spare parts, remote support, and practical operator training. However, no top-ten list stays permanent. A capable factory may still have weak delivery planning or slow after-sales communication. Buyers should inspect weld quality, sensor placement, guarding, and film tension during acceptance testing. Independent audits and reference calls can expose gaps that brochures often miss. A cheaper quotation is not always better. Price deserves attention, but repeatable wrapping results deserve more.

What Products, Technologies, and Industries Do These Manufacturers Serve?

China’s leading automatic stretch wrap machine manufacturers serve more than pallet wrapping. Their product lines include turntable, rotary-arm, and ring-type systems. Some build compact units for small warehouses. Others engineer high-speed lines for beverage, food, appliance, and e-commerce distribution centers. In plant operations, film carriage control matters as much as wrapping speed. It decides whether corners stay protected or film costs rise. Small detail. Big effect.

Modern equipment often combines PLC controls, photoelectric sensors, variable-frequency drives, and automatic film cutting. Load-height detection reduces manual adjustments around uneven cartons. Pre-stretch systems can lower film consumption while maintaining stable containment force. Conveyor integration links wrapping with weighing, labeling, and pallet transfer. Remote diagnostics are increasingly useful, although network reliability remains a practical concern. A dashboard cannot repair a loose sensor.

Manufacturers also adapt machines for cold storage, building materials, textiles, furniture, and export logistics. Dust-resistant frames suit mineral products, while stainless-steel contact areas support hygienic production zones. Safety guarding, emergency stops, and accessible maintenance points improve dependable operation. Yet specifications on paper can mislead. A machine tested with perfect pallets may struggle with soft, unstable loads. Buyers should request sample trials, film tests, cycle data, and service response terms before choosing among leading suppliers. That step is often skipped. It should not be.

How to Choose the Right Chinese Manufacturer for Your Packaging Needs?

Choosing among China’s top automatic stretch wrap machine manufacturers requires more than comparing quoted prices. Mordor Intelligence estimates the global stretch film market could grow from about USD 3.3 billion in 2024 to over USD 4.5 billion by 2029. This growth increases supplier competition, but not every machine suits every pallet. Define your load weight, pallet dimensions, film gauge, required throughput, and pre-stretch ratio before requesting quotations.

Ask each manufacturer for a recorded factory acceptance test using your actual pallet pattern. Check film tension, corner protection, wrapping consistency, emergency stops, and cycle time. A stated speed of 40 loads per hour may change with unstable cartons or heavier products. PMMI reports that labor shortages and productivity pressures remain major drivers of packaging automation. Therefore, inspect controls, recipe storage, sensor accuracy, and operator training, not only mechanical speed.

Request electrical diagrams, spare-parts lists, maintenance intervals, and remote-support response times. Confirm export documentation and destination-market safety requirements before payment. A transparent supplier should explain motor brands, inverter specifications, warranty limits, and installation responsibilities. I would keep some doubt about impressive demonstrations. A clean sample pallet can hide difficult production conditions. Compare at least three offers, calculate film consumption, and review reference installations with similar loads. The cheapest quotation can become expensive when downtime, damaged film, or delayed parts enter the calculation.
